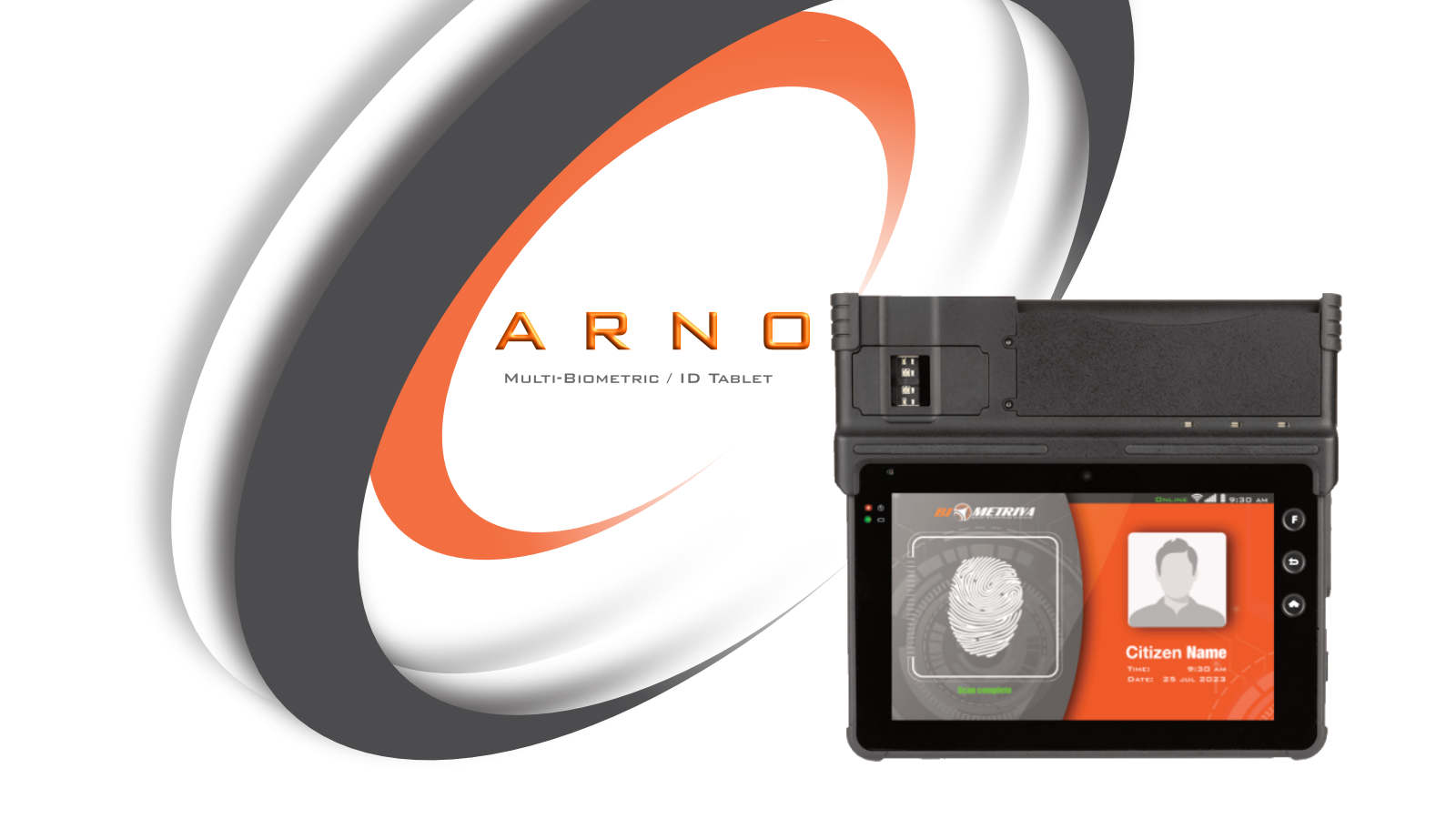

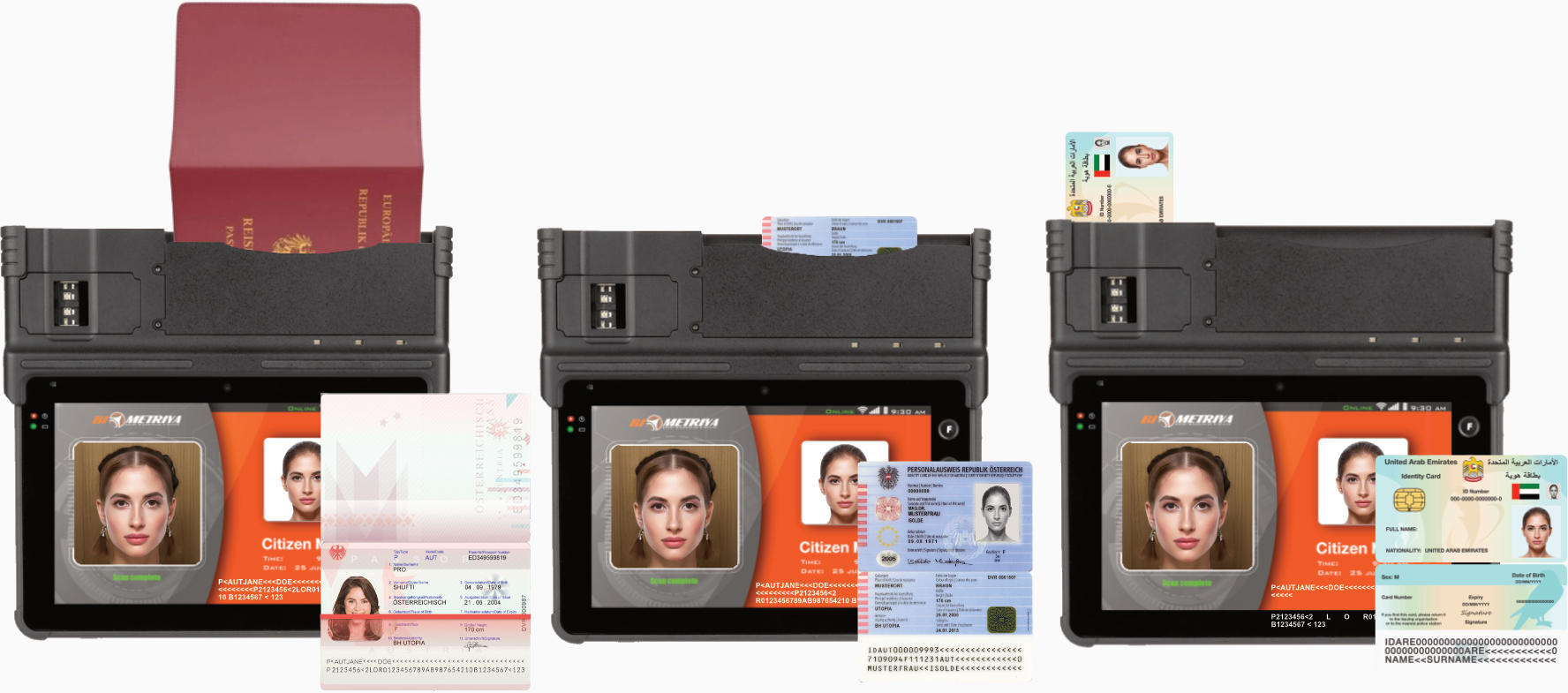

BIOMETRIYA Arno enables high performance multimodal biometrics and document identity in a uniquely compact form factor, delivering iris, fingerprint, face passport, ID Cards enrollment and Identification.
The utilization of Arno proves to be indispensable for various sectors, including law enforcement, border control, civil enrollment, elections, and organizations seeking to verify the identities of employees and visitors. Its integration of fingerprint and facial recognition technologies significantly enhances security by combining three distinct biometric methods within a single mobile terminal: fingerprint, iris, and facial recognition.
Arno operates on the latest Android platform, boasting advanced security features and dependable, high-speed connectivity options such as 4G LTE. This ensures not only safety but also durability during daily operations. Arno is poised to greatly streamline the complexities associated with mobile ID authentication and registration.
The new generation of Muti-biometric identity tablet is here...
Dimensions
213mm(H) x 195.3mm(W) x 30.55mm / 20.95mm(D)
Weight
850
Display
7.0Inch / HD(1280x800) - 700 nits (cd/m2)
CPU & RAM
1.8 GHz Hexa-core CPU Cortex A72 Dual-core 1.8GHz / Cortex A53 Quad core 1.4Ghz
Power
Extended Battery Li-Polymer 10,050mAh (embedded)
Input
3 Front keys, 5 Side keys (Programmable)
Touch Panel
Capacitive Touch / Gorilla Glass 3 / 10 point multi touch
Expension Slot
2 slot for Micro SIM card, PSAM card slots
Interfaces
USB type 3.0A Host, USB 2.0 OTG and External Serial RS232C
Sensors
Accelerometer sensor, light sensor, geomagnetic sensor; gyroscope
Notification
Sound. LED indicator
Audio
1 microphone; Dual speaker

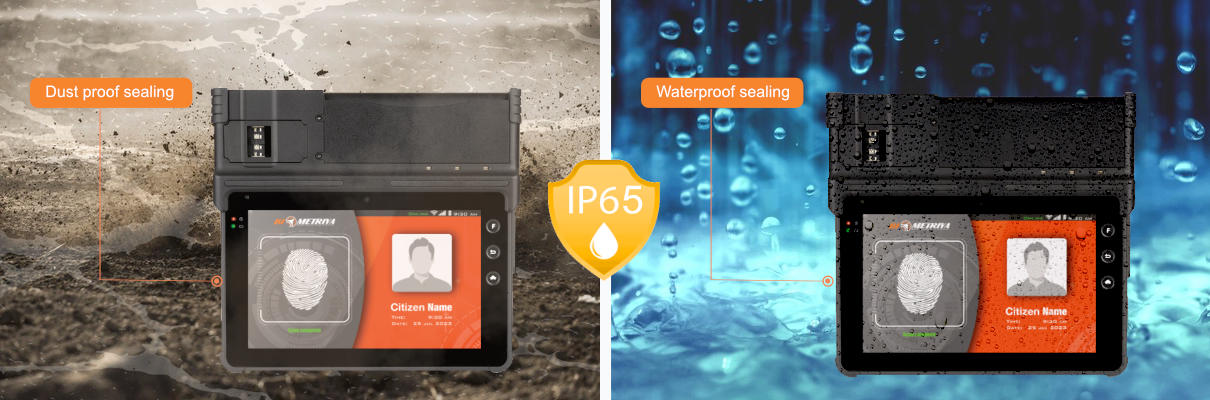

Ingress Protection
IP-65
WLAN
Support 802.11 a/b/g/n/ac/d/e /h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13),
5G(channel 36,40,44,48,52,56,60,64,100,104, 108,112,116,
120,124,128, 132,136,140,144,
49,153,157,161,165),
Depends on local regulations
WWAN (Europe, Asia)
Frequency band EU (USA Optional)
4G LTE : 800, 900, 1800, 2100, 2600MHz
3G HSPA+ : 900, 2100MHz
2G GSM/GPRS : 900, 1800MHz
Bluetooth
Bluetooth 4.2 BLE
GPS
AGPS, GLONASS (optional)
Rear Camera
13 Mega pixels + LED Flash
Front Camera
2 Mega pixels
Contact Card Reader
ISO 7816 Class A, B and C (5V/3V/1.8V) card
1D/2D Symbology
1D, 2D, PDF417, QR code, Code 39, Code 128,DataMatrix, UPC-A (Zebra SE4710)
NFC
Integrated NFC Reader (NXP PN548) ISO/IEC 14443 A/B

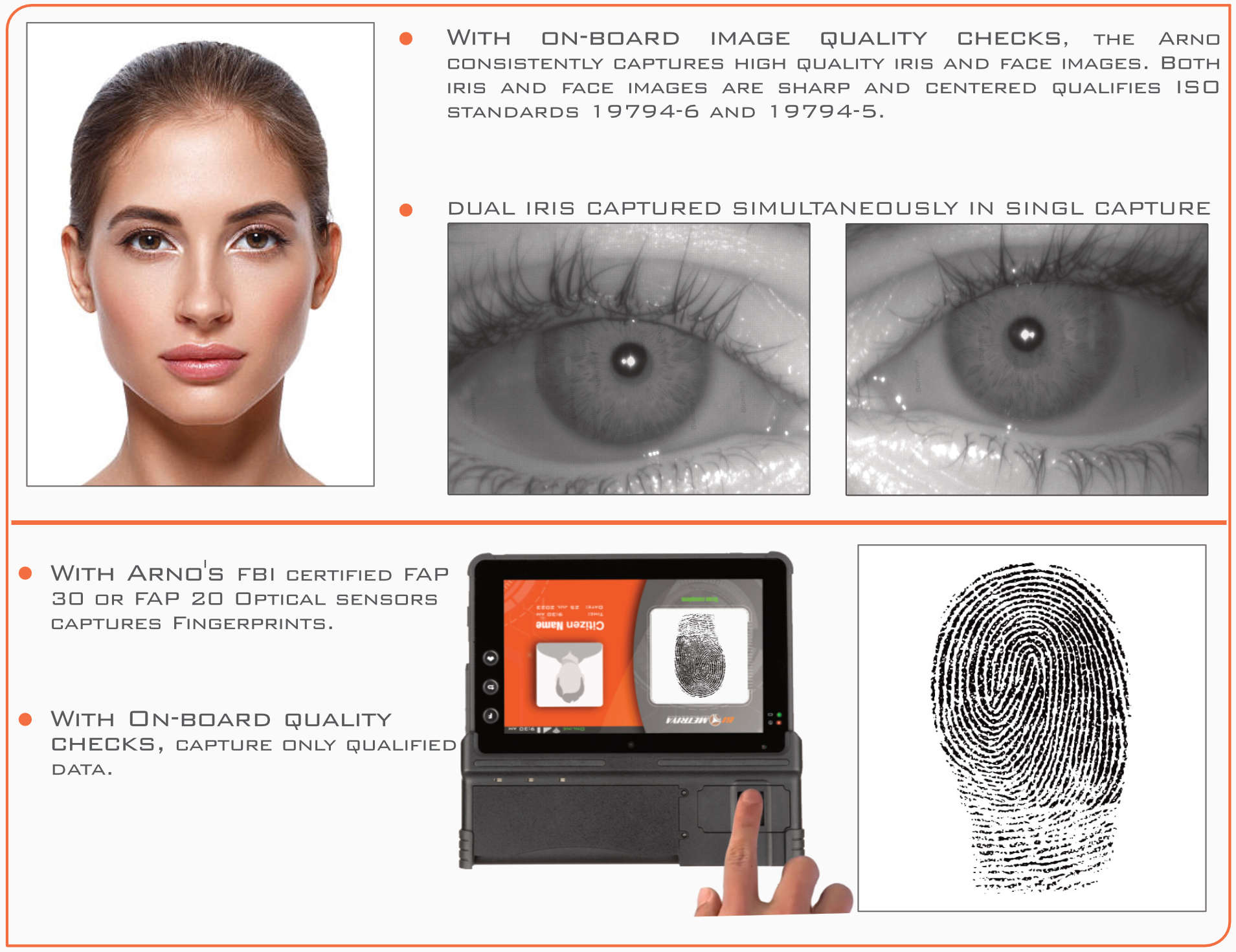

Biometric - Fingerprint Recognition
Optical FAP 20, BM-Slim 2 Suprema, 500 dpi, FBI PIV certified
Biometric - Facial Recognition
ISO 19794-5
Biometric - Iris Recognition
ISO 19794-6, Iris capture volume 130mm x 45mm x 80mm, with 5MP IR camera
Operating System
Android 11 and above
Supported MDM
AirWatch and others
SDK
Available
Language
JAVA
Tool
Eclipse / Android Studio
Operating Temp
-4 °F to 140 °F / -20 °C to 60 °C
Storage Temp
-22 °F to 158 °F / -30 °C to 70 °C
Humidity
Operating: 10% RH - 75% RH noncondensing, Storage: 5% RH - 85% RH noncondensing
Sealing & Rugged
1.2 m (4 ft.) drop to concrete / IP65 sealing specification
Other Certification
CE, FCC, RoHS
