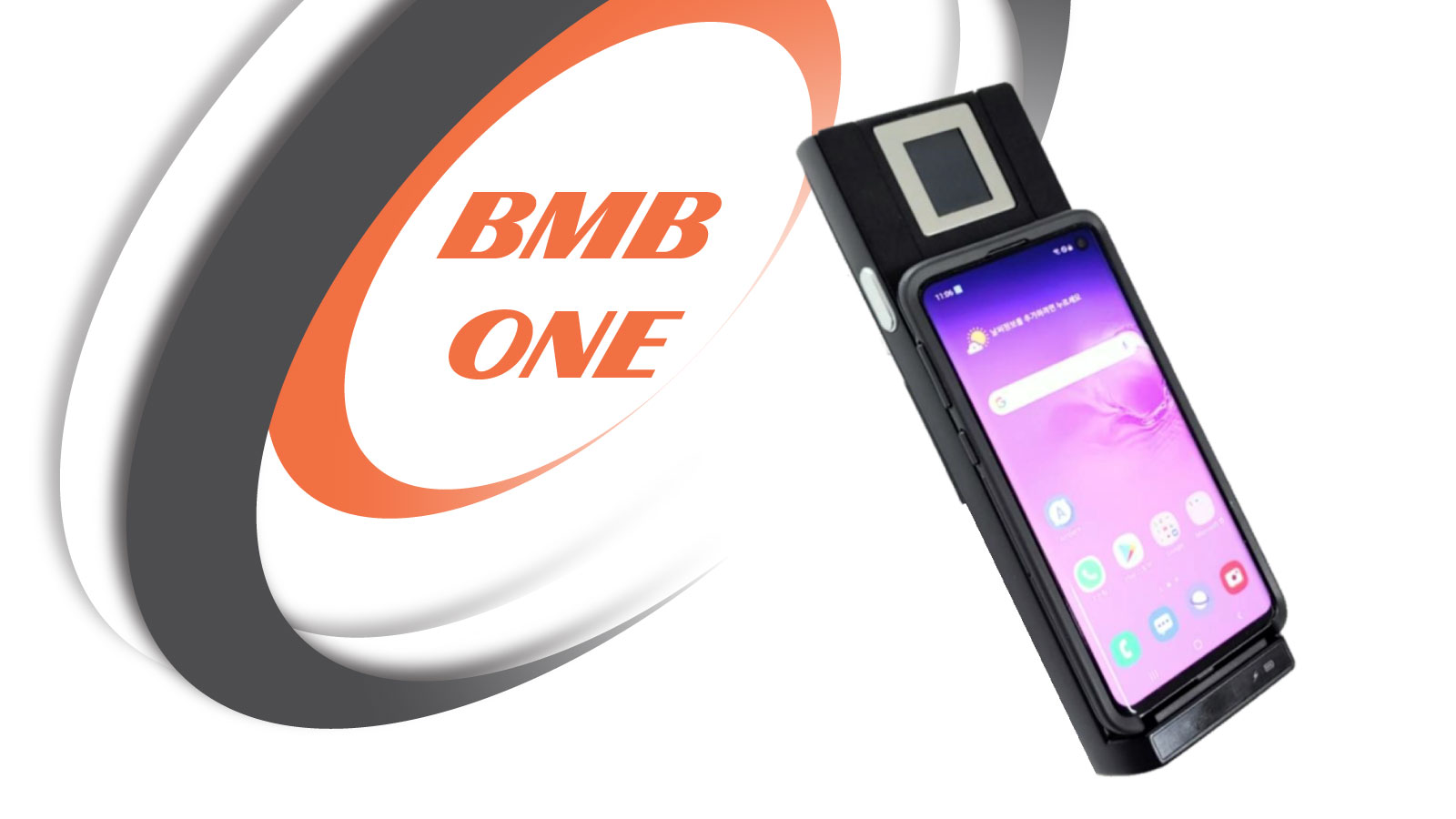

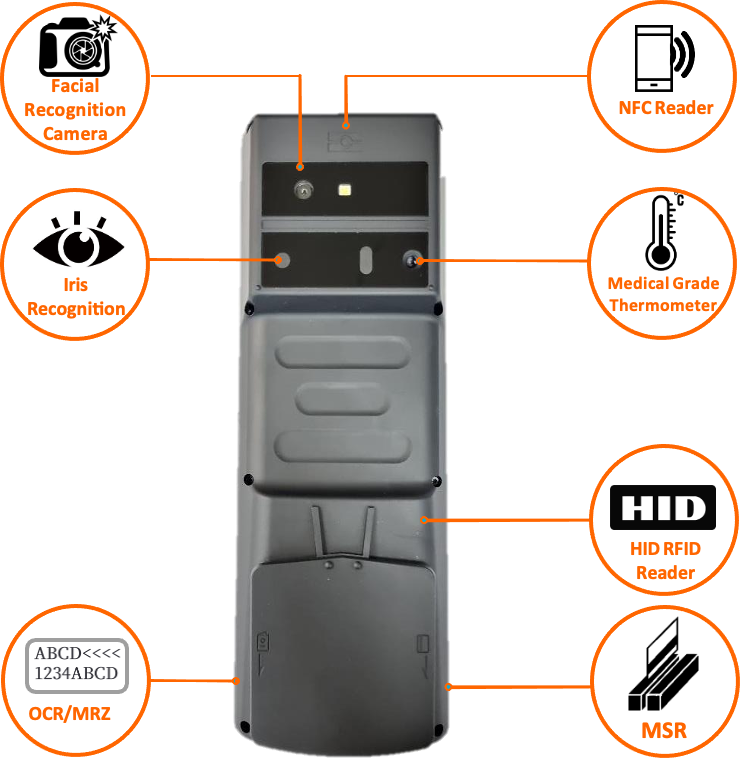

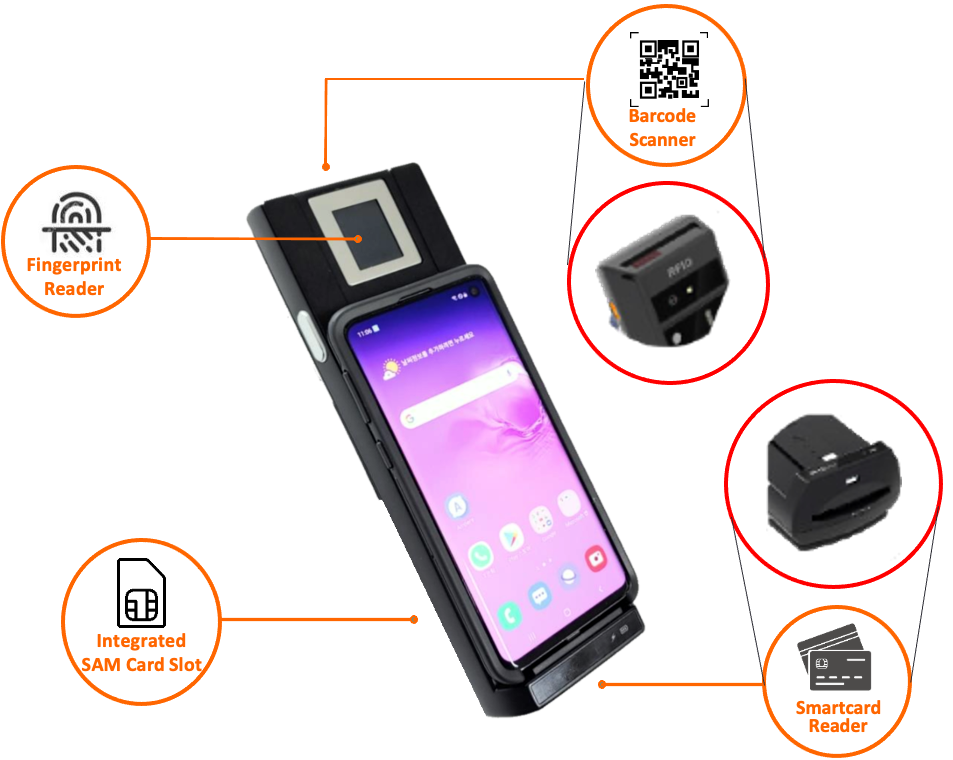

BMB One is versatile mobile platform for verification and authentication of citizen identity by using state-of- the art biometric and automatic data capture technologies. It is equipped with multi-modal biometric sensors of fingerprint , dual iris, facial recognition, and thermometer and e-document readers of MRZ, Barcode scanner, contact & contactless smart card, HID iClass and MSR. All functions can co-exist in one device or user can select needed options only. Built-in 6700mAH battery ensures all-day long operation.

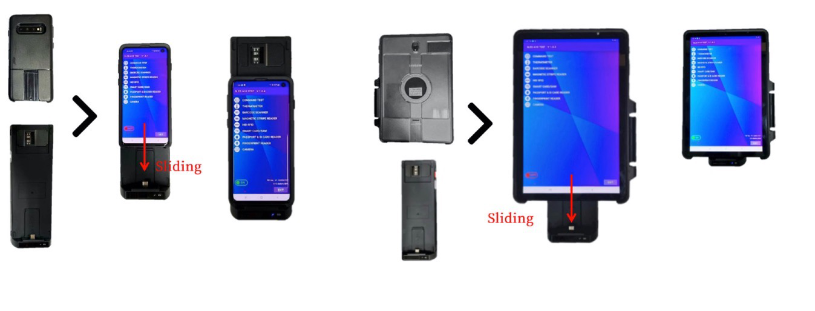

BMB ONE is compatible with virtually all android smartphones and tablets which provide customers with a great deal of flexibility in selecting base device and changing in the future in accordance with budget and application.
BMB ONE is IP64 sealed and 1.5m drop-resistant to endure outdoor work environment.
BMB One will certainly streamline mobile operations of access control, workforce management, air/sea port control, KYC(Know Your Customer) and any applications requiring verification and authentication of individual identity.
Fingerprint (one finger)
IB DANNO FAP30 TFT PIV Certified
(Suprema FAP20 : Optional)
Sensor : Light-emitting sensor (LES) TFT camera
Resolution / Gray Scale : 500 ppi / 256 grayscale
Imager Size / Speed : 400 x 500 pixels / > 10 FPS
Dual Iris Scanner
Sensor : 5MP B&W CMOS sensor
Range / Resolution : 320±40mm / Above 160 pixel/cm
Illumination / Image : IR LED / 2592 x 920 x 30 frame
Camera
Sensor : 5MP B&W CMOS sensor
Range / Resolution : 320±40mm / Above 160 pixel/cm
Illumination / Image : IR LED / 2592 x 920 x 30 frame
Contact Smart Card Reader
Contact type smart card reader : ISO 7816 compliant
NFC
ISO 14443A/B part 1-4 Mifiare Classic
Optimized for e-Passport and eID card RFID chip reading
1 SAM slot
HID RFID Reader
HID OMNIKEY 13.56 MHz HF / 125 KHz LF RFID
HF Transmit Frequency 13.56 MHz +/- 50 ppm
Smart Card Technologies:
ISO14443A/B ISO15693, FeliCa™ (IDm), CEPAS (CSN)
MRZ (OCR)
HID1, ID2 and ID3 document type
ID cards, Passports, visas, Driver’s Licenses
ICAO 9303, ISO/IEC 7501-1, ISO 18013-3
Barcode Scanner
High performance 1D/2D Imager
MSR
Reads magnetic cards complying with ISO7811/2-5
Thermometer
High precision non-contact temperature measurements Ideal distance is around 3cm (1.2inch)
High accuracy of 0.5℃ (32.9°F) in a wide temperature range
Measurement resolution of 0.02℃ (32°F)
Compatible Smartphones
Samsung Galaxy smartphones and Tab Galaxy Tab if fingerprint reader is not required
(Any android devices supported by Otterbox uniVERSE cases)
Battery
6700mAH Li-Polymer
Dimensions
80mm(W)x 230mm(L)x 45mm maximum thickness / 28mm(D) minimum thickness
3.1 inch (W) x 9.0 inch (L) x 1.7inch / 1.1inch (D)
Weight
430g (15 oz) All technologies included
Buttons
3 buttons on the A10 sides.
(2 programmable keys / One power key)
LED
2 LED : charging / power status
Smartphone Connect
USB Type C (male)
Smartphone Positioning
Otterbox uniVERSE case with slot and slide
Connection
USB Type C (female) for charger connection and for connecting to other equipment
Communication
C type USB host / client
Charging
High-speed charging : 5~12V, 1.5A (Smartphone & A10)
Qualcomm quick charge 3.0 supported When the A10 is off
: A10’s battery support (charge) smartphones
: Smartphones and A10 can be charged simultaneously
Operating Temp
-20℃ ~ 60℃ (-4°F ~ 140°F)
Storage Temp
-30℃ ~ 70℃ (-22°F ~ 158°F)
Humidity
Non-condensing, 93%
Drop & IP sealing
1.5m (w/o smartphone) , IP64 (w/ cover to smartcard reader)
Smartphone OS
Android 9.0 or higher
Development Tools
Android studio, Eclipse
Development SDK
With Java SDK : Barcode scanner, MRZ, MSR, Fingerprint, Smart card, Iris, RFID, Temperature Measurement, Camera
