BIOMETRIYA BMBT

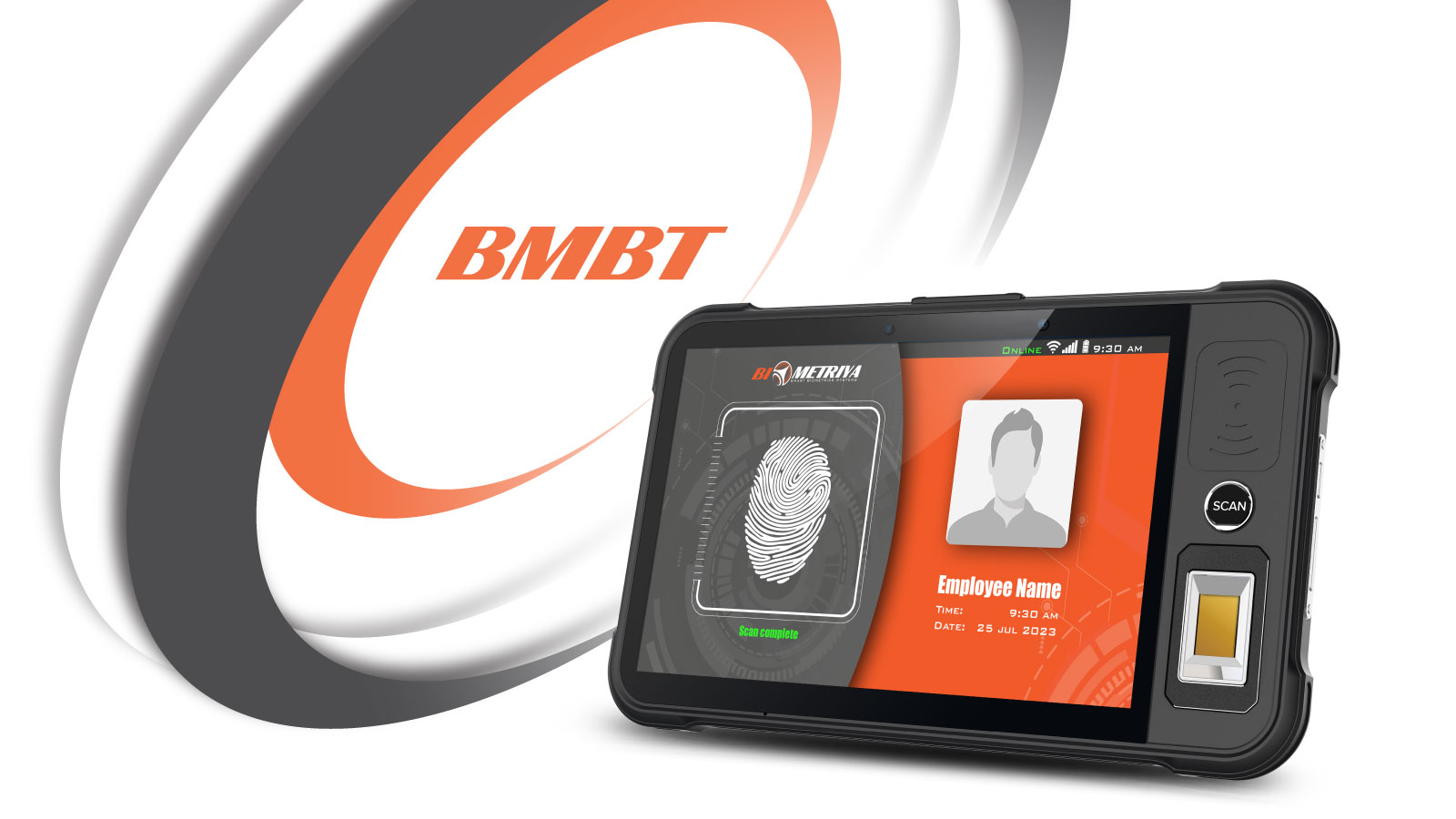

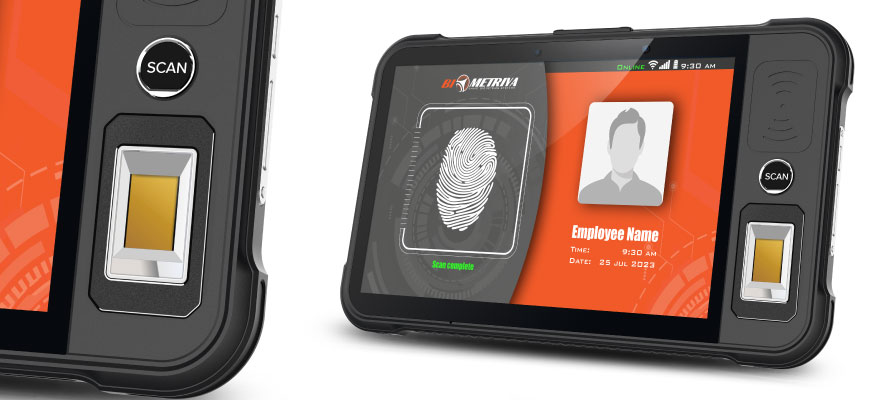

Biometriya Multi Biometric Tablet (BMBT)

The unique Biometriya Multi Biometric Tablet 20 (BMBT20) utilizes the best, cutting-edge sensors to capture high quality biometric input for identification and verification in various rugged environments. Biometriya BMBT 20 is an Android 9 rugged tablet with rich features such as a powerful Qualcomm CPU, 8 inch high-definition LED screen, HF RFID/NFC, and fingerprint recognition capacity indoors and outdoors. It is a state-of-the-art, easy deployment solution readily increasing production for retail, warehousing and logistics, national/citizen identity verification, SIM card distribution, and so much more.

The possibilities are endless...

PHYSICAL SPECIFICATION

Dimensions

250.8 x 152.0 x 15.0 mm / 9.87 x 5.98 x 0.59 in

Weight

700 g / 24.69 oz. (for standard version)

Display

8'' IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power

Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours
Continuous use: over 10 hours (depending on user environment)
Charging time: 5-7 hours (with standard AC adaptor and USB cable)

Expansion Slot

1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots

Interfaces

USB 2.0 Type-C, OTG

Sensors

Accelerometer sensor, light sensor, proximity sensor, geomagnetic sensor; gyroscope

Notification

Sound, LED indicator

Audio

1 microphone; 1 speaker; receiver

COMMUNICATION SPECIFICATION

WLAN

Support 802.11 a/b/g/n/ac/d/e /h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6;
Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13),
5G(channel 36,40,44,48,52,56,60,64,100,104, 108,112,116,120,124,128, 132,136,140,144, 49,153,157,161,165),Depends on local regulations; Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP- GTC, etc.

WWAN (Europe, Asia)

2G: 850/900/1800/1900MHz, GPRS, EDGE
3G: CDMA EVDO: BC0
TD-SCDMA: B34/B39 WCDMA: B1/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-LTE: B1/B3/B5/B7/B8/B20

WWAN (America)

3G: WCDMA: B2/B4/B5
4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B

Vo-LTE

Support Vo-LTE HD video voice call

Bluetooth

Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR

GNSS

GPS/AGPS, GLONASS, Galileo, internal antenna

DATA COLLECTION SENSORS SPECIFICATION

Rear Camera

13 Mega pixels

Front Camera

8 Mega pixels

Contact Card Reader (Optional)

ISO 7816

1D Symbology

UPC/EAN, Code128, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS etc.

2D Symbology

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.s

RFID-UHF (Optional)

865- 868 MHz / 920- 925 MHz / 902- 928 MHz

NFC/HF

Frequency: 13.56 MHz
Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips: M1 card (S50, S70), CPU card, NFC tags.
Range: 2- 4 cm

Fingerprint

FAP 20, FAP 30 (Optional)

OPERATING SYSTEM SPECIFICATION

OS

Android 9 and above

Supported MDM

AirWatch

SDK

Available

Language

JAVA

Tool

Eclipse / Android Studio
